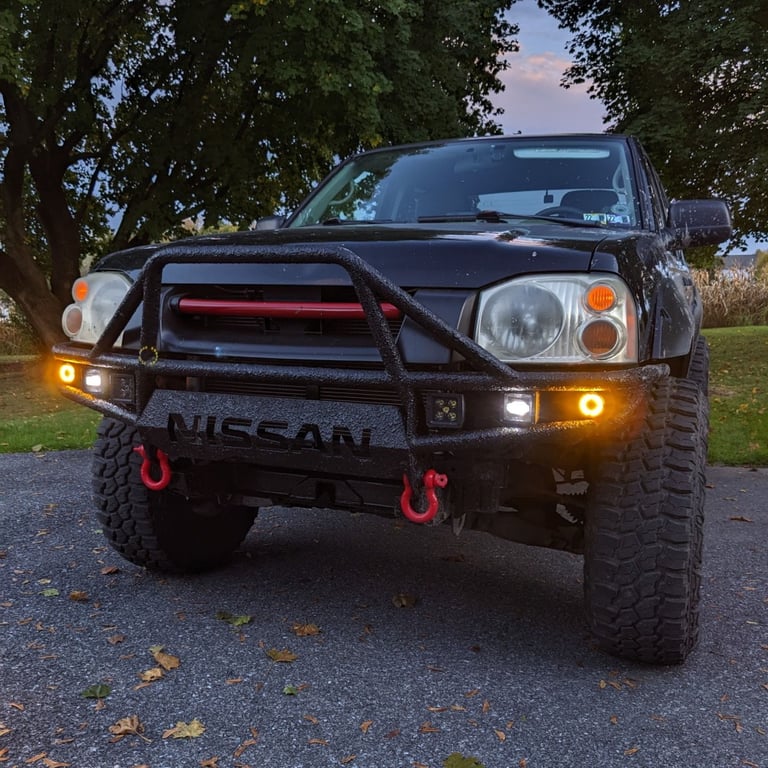

Front Lighting





10.28.22

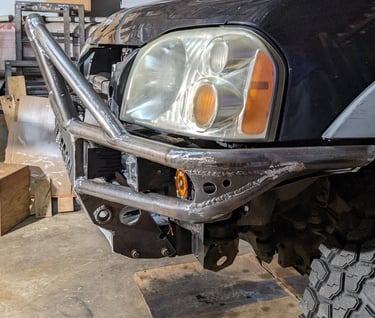

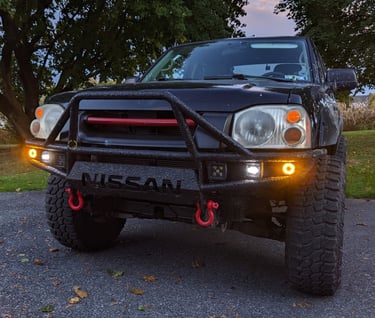

Front Headlights need a major overhaul



The front headlight housing and lights need a major overhaul, but I have something custom planned which should make this 1st Gen Frontier stand out.



Additional Day Time Running Lights

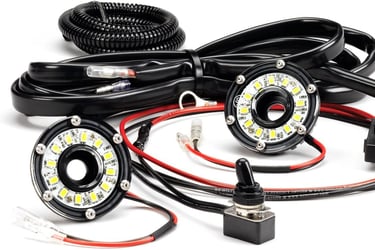

KC HiLite Amber Cyclones were hooked into the OEM side marker/DRL wire for power.

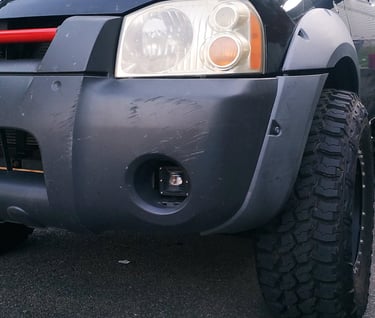

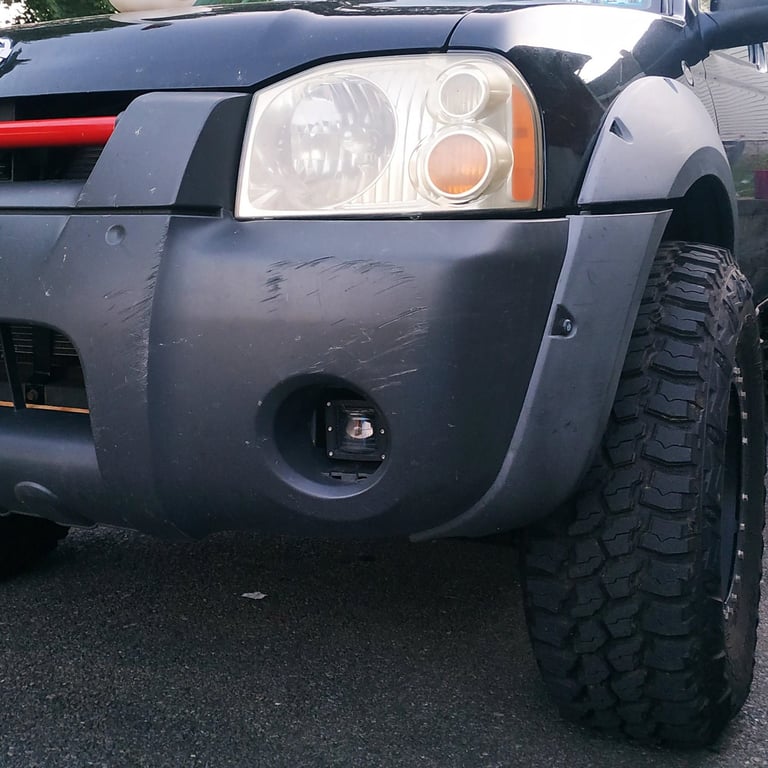

Fog Lights



These fog lights were nice because they also fit in the stock bumper and they are LED with a great cutoff pattern so as to not blind on-coming drivers.

Fog light relay wire was spliced into running light power wire first, followed by an internally mounted power switch, to allow them to be turned off separately if so desired.

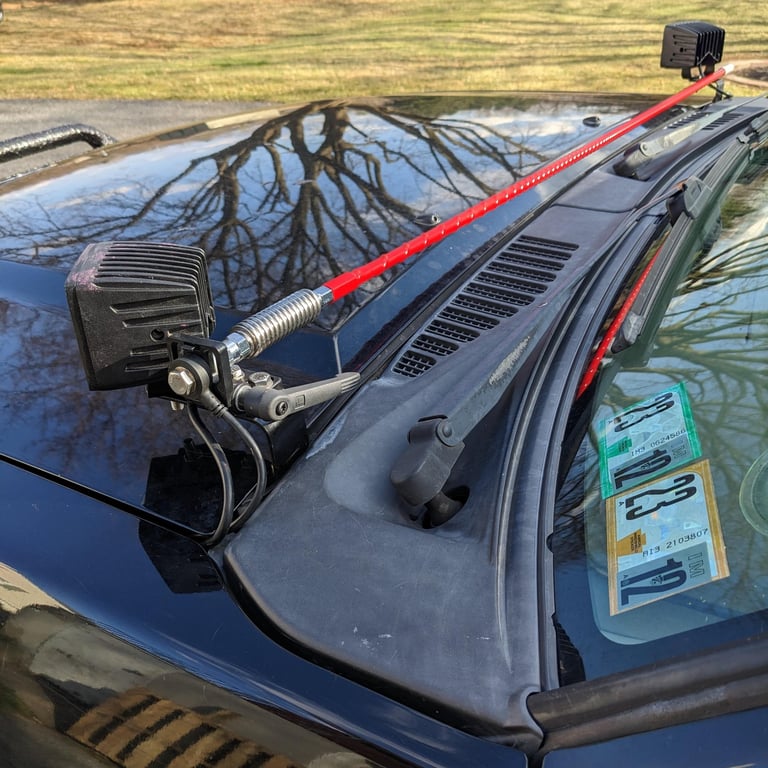

Spot Beams



The spot beams really help brighten up the night, and the relay is spliced into the high beam power wire so that they come on at the same time as the high beams.


The complete list of items used can be found in the Parts List below. Links may include affiliate referrals.



Parts List





Total Cost = $248

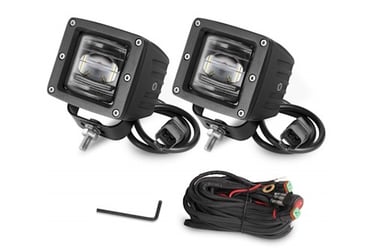

LED Fog Lights



$97



Has a nice light cut-off pattern



LED Spot Beams



$35



With this harness - $14

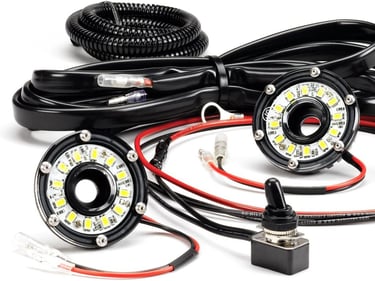

KC HiLiTES Amber Cyclone LEDs



$90



I got the v1 Cyclones, and didn't need all this wiring, but the v1's are discontinued

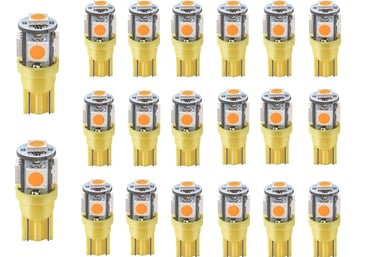

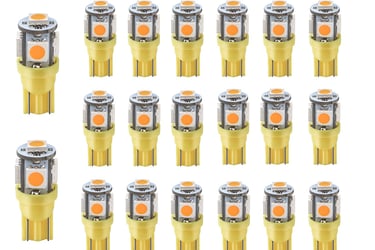

Corner Marker DRL LEDs



$10



Corner Marker lights in the headlight housing

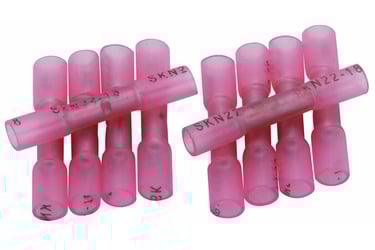

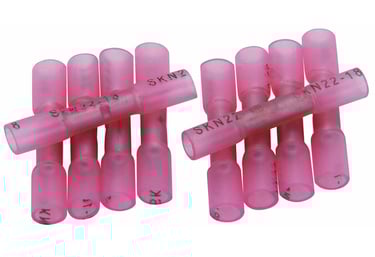

Butt Connectors



$2

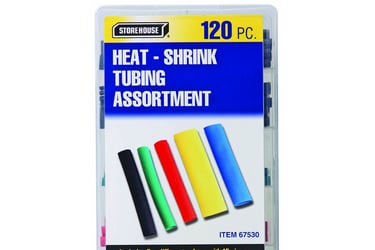

Heat Shrink Tubing



$4
