Poor Mans Lift - Torsion Bar Tightening





4.18.20

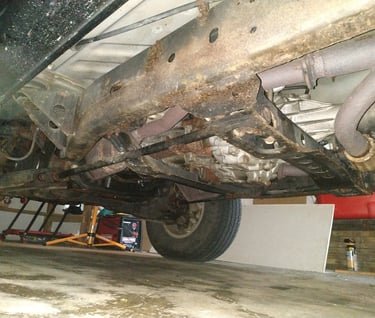

Lifted the front ~2.5"



This ClubFrontier.org post has a lot of good information on lifting this gen Frontier with links to videos, which can probably answer a bunch of questions you might have. If you want to fit 33" tires without cutting the fenders, you'll want to install a 3" body lift and not install wheels with a huge negative offset. I went the cheaper route and with a -12mm offset wheel, so I had some cutting to do.

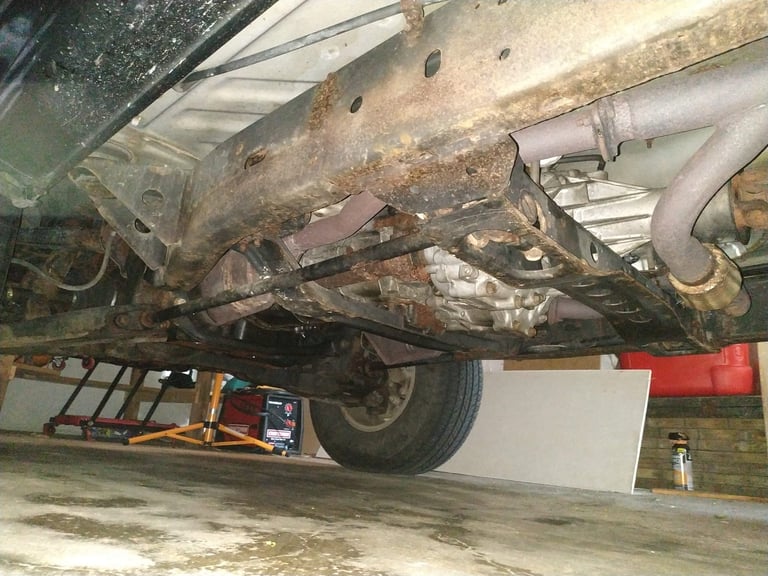

You need two 19mm wrenches, a 19mm socket, and a breaker bar would help. Make sure the front of the truck is lifted off the ground when you tighten them, and take measurements beforehand as well.

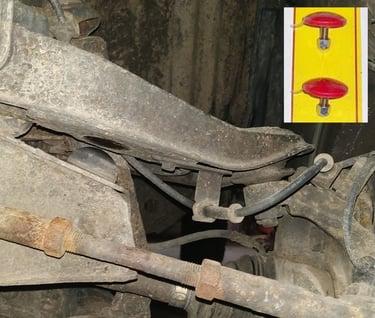

Bump Stops



It's recommended to leave at least 1/2" of space between the bump stop and the Upper Control Arm. Measure it when the truck is back on the ground, after rocking it a little and rolling the truck back and forth to get it in it's resting position. I'll eventually be acquiring the Ultra Low Profile Bump Stops as shown above (see Parts List below).

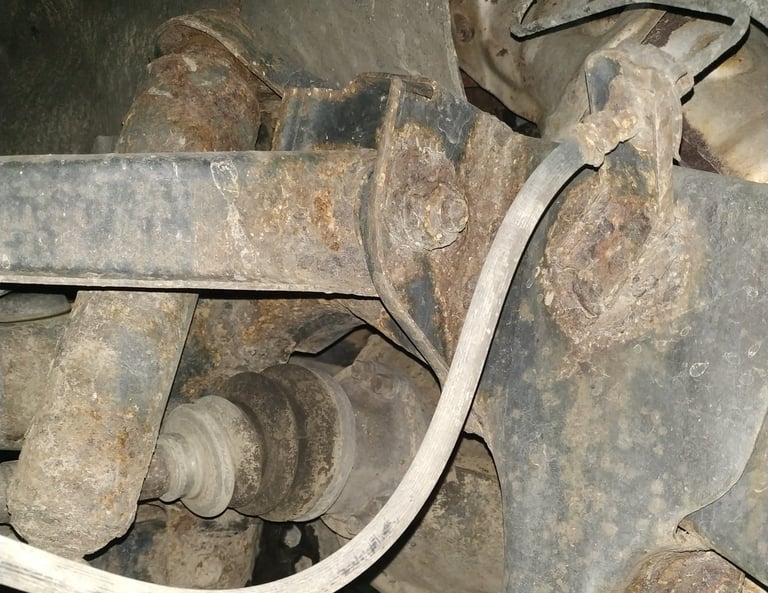

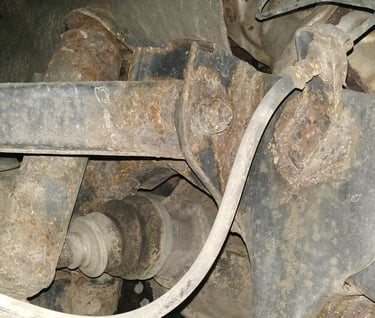

Upper Control Arms and Camber Bolts



I will eventually be swapping out the UCA's, camber bolts, and bump stops. The alignment tech wasn't able to adjust the camber bolts due to the rust, so I'll probably need to cut them off in order to replace the UCA's. You can get about 2-2.5" of lift in the front without needing to get new UCA's, and after replacing the parts mentioned above, you can get another 1" or so. Be aware that the maxed out lift angled will be harder on the CV axle joints and you will wear them out faster. I always keep an extra front axle and tie-rod in the truck when going off-roading, and since both sides match, you only really need to carry one of each.

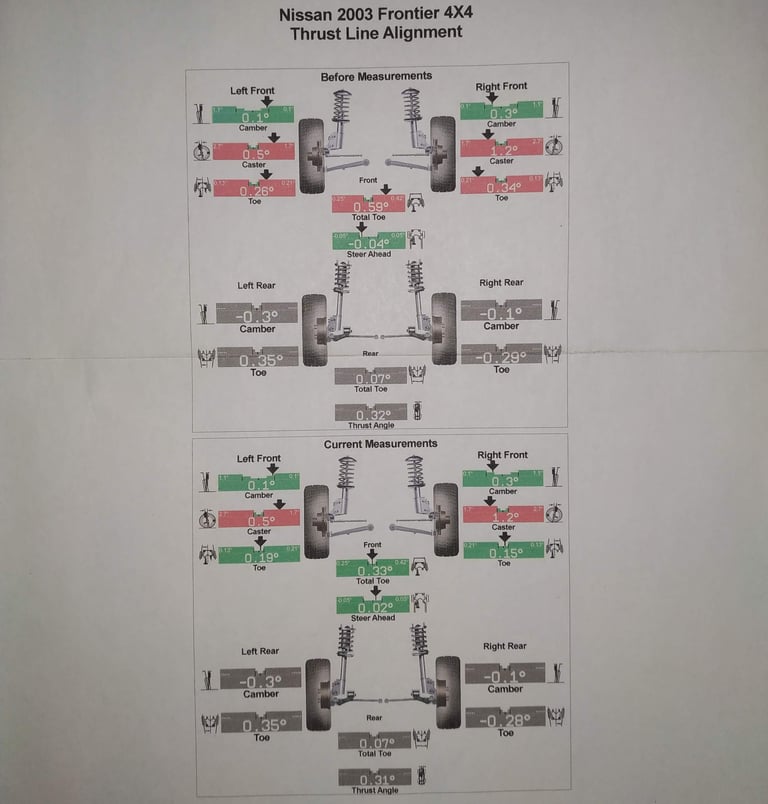

Alignment is a Must



An alignment is definitely a requirement once you have lifted the truck to your desired height to prevent tire cupping and premature wear. I purchased the Lifetime Alignment from Firestone Auto, because I knew I'd be going back a few times.

The tech was unable to resolve all the issues due to the above mentioned rusted bolts. The current specs seem fine as it is, as I've got about 6k miles on the current mud terrains, and I'm not seeing any wear issues. I'll keep this updated in a couple thousand miles.

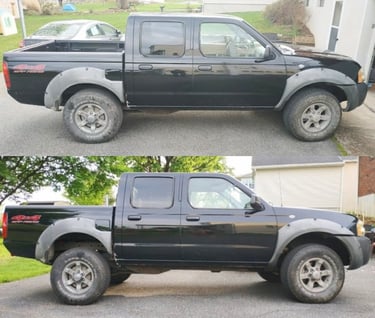

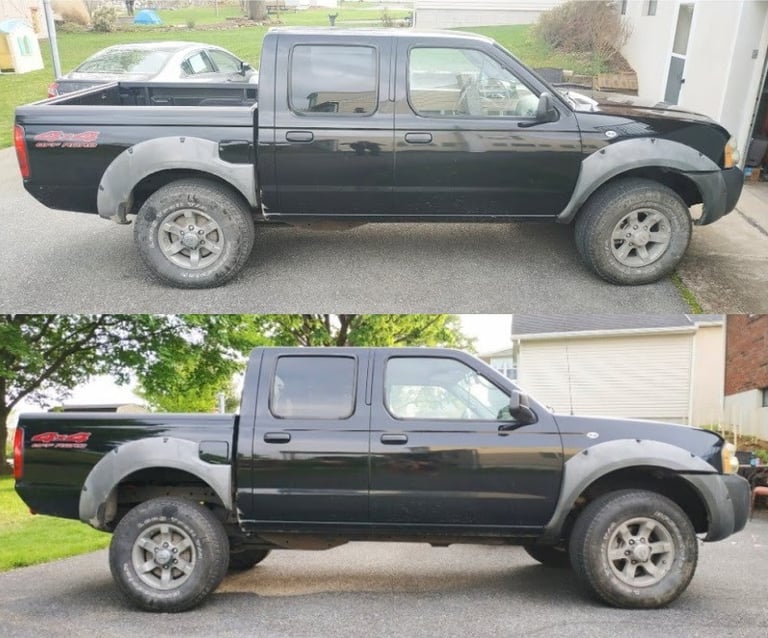

After PML



The rear was lifted about 3", so there will be a little rake, until I get the 4x4parts.com UCA, and possibly the low profile bump stop, which should let me get about another 1/2" or so lift in the front.

Instructions for installing new rear leaf packs can be viewed here.


No additional parts were required to lift this truck to the point were it is now. If you want to replace parts to get the full lift possible, or need replacement parts, I'll include links below.



Parts List





Total Cost = Free

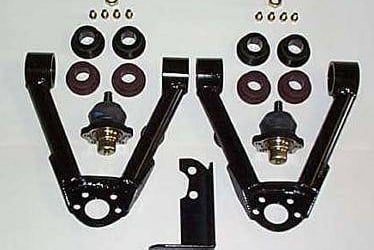

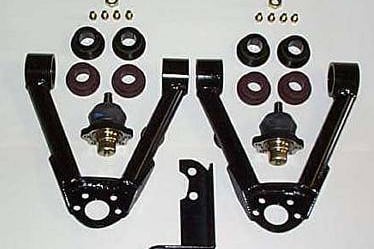

Upper Control Arms



$470+



Potential future purchase. Quite a few options to choose from and it's probably worth getting the idler arm brace if you don't already have that.

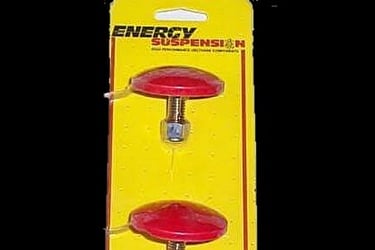

Ultra Low Profile Bump Stops



$13



Potential future purchase. You can get a little more clearance for additional lift

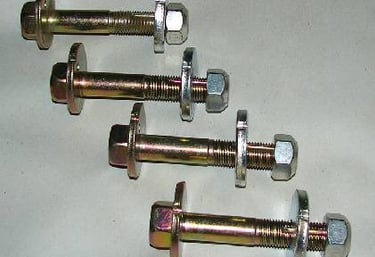

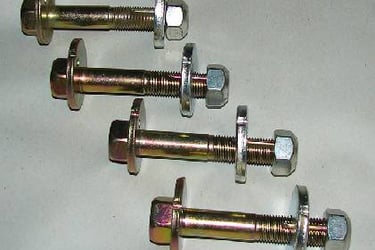

Cam Bolts



$125



If your old cam bolts are rusted in place and need to be cut off in order to replace the UCA's, these should do the trick.
